Details
Elcometer 106/6 Coatings on Concrete Adhesion Tester
The Elcometer 106/6 Adhesion Tester has been specifically designed to measure adhesion strength of coatings on concrete.
Operating in a similar way to the regular Elcometer 106 Adhesion Tester, the Elcometer 106/6 uses a 50mm (2”) diameter dolly for testing coatings adhesion on concrete.
The Elcometer 106/6 is fully portable and supplied in a carry case – making it ideal for on site tests.
| Weight | 5.7 kg |
|---|---|
| Dimensions | 10.5 × 21 cm |
Technical Specification
| Part Number | Description | Certificate |
| F106—-6 | Elcometer 106/6 Coatings on Concrete Adhesion Tester – Scale 6 |  |
| Range | 0 – 3.5MPa (N/mm²) 0 – 500psi | |
| Dimensions | 105 x 210mm (4 x 8″) | |
| Gross weight of Kit | 5.7kg (12.6lb) | |

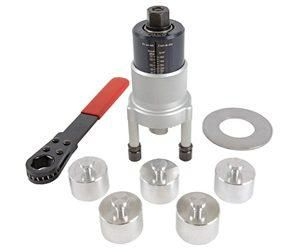

| Packing List | Elcometer 106/6 Coatings on Concrete Adhesion Tester, 5 x 50mm (2”) dollies, support ring, Araldite adhesive, ratchet spanner, carry case and operating instructions | |
Standards
ASTM D 7234, BS 1881-207, DIN 1048-2, EN 1542, EN 12636
