Details

---

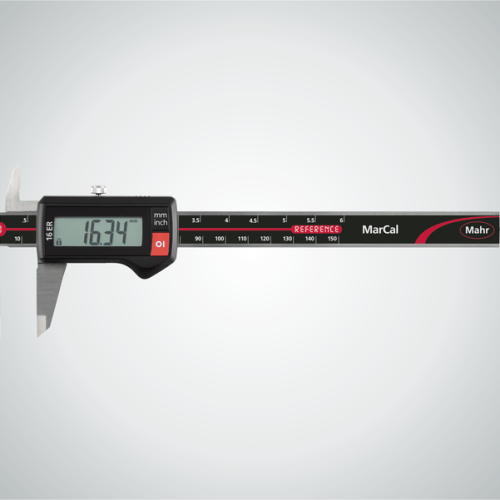

Digital caliper MarCal 16 ER
Measuring range mm: 0 – 200 mm
Resolution mm/inch: 0.01 / .0005″
Depth rod: rectangular
Data interface: none
Friction wheel: true
IP protection category: None

Code No.: 4103206


Weight	3 kg
Dimensions	33 × 10 × 4 cm



Product Information

• High contrast digit display
• Locking screw above
• Lapped guideway
• Measuring blade for inside measurements
• Slide and beam made of hardened stainless steel
• Step measuring function
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Dirt wipers are integrated in the slide

Technical Data

Measuring range mm	0 – 200 mm
Measuring range inch	0 – 8″
Resolution mm/inch	0.01 / .0005″
Error limit (mm)	0.03 mm
Error limit inches	.001″
Standard	ISO 13385-1
Battery type	CR 2032 (3V Lithium)
Depth rod	rectangular
Friction wheel
Dimensions	a 10 mm | b 50 mm | c 19 mm | d 285 mm | e 16 mm |

Datasheet

4103206-digitaler-messschieber-marcal-16-er
