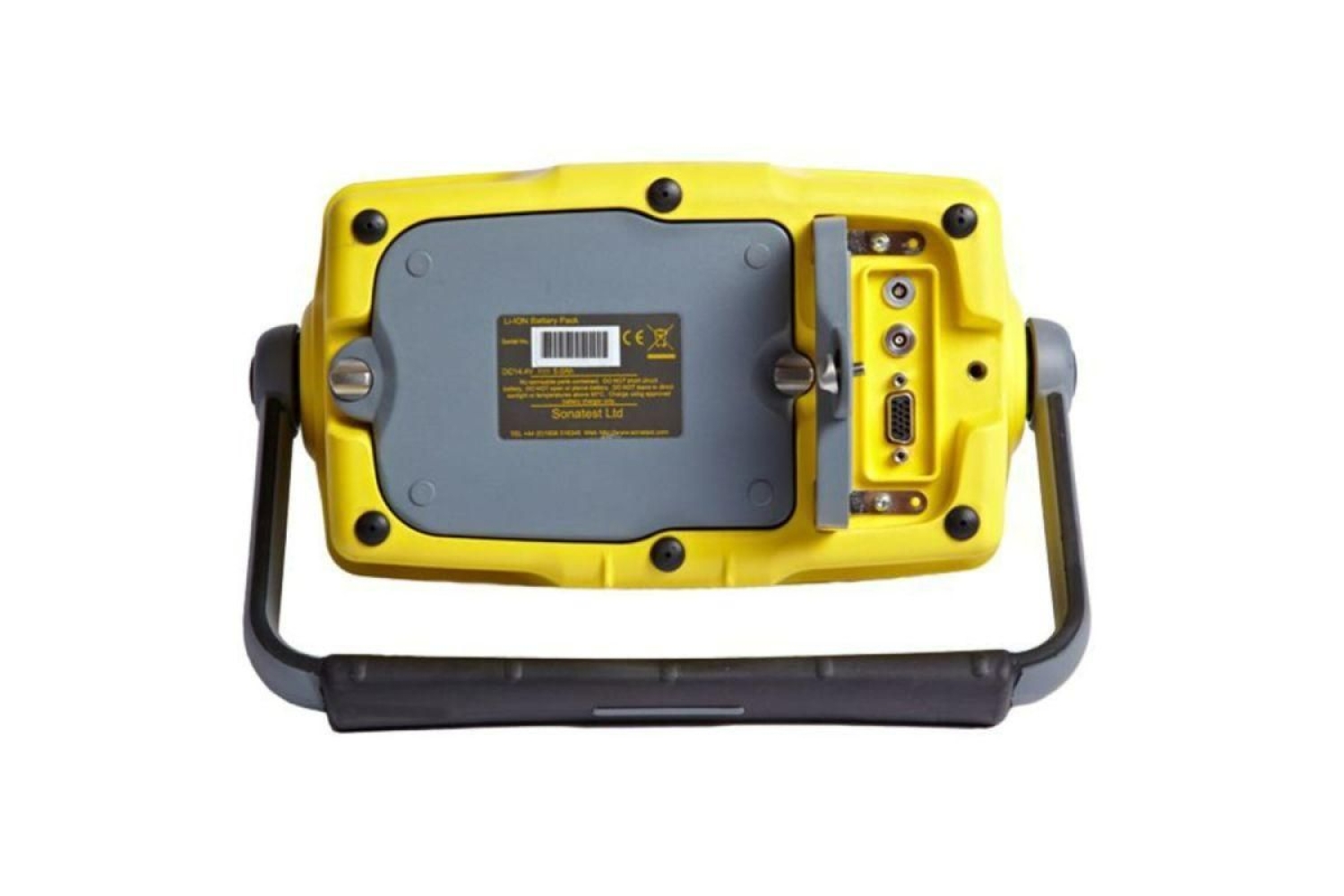

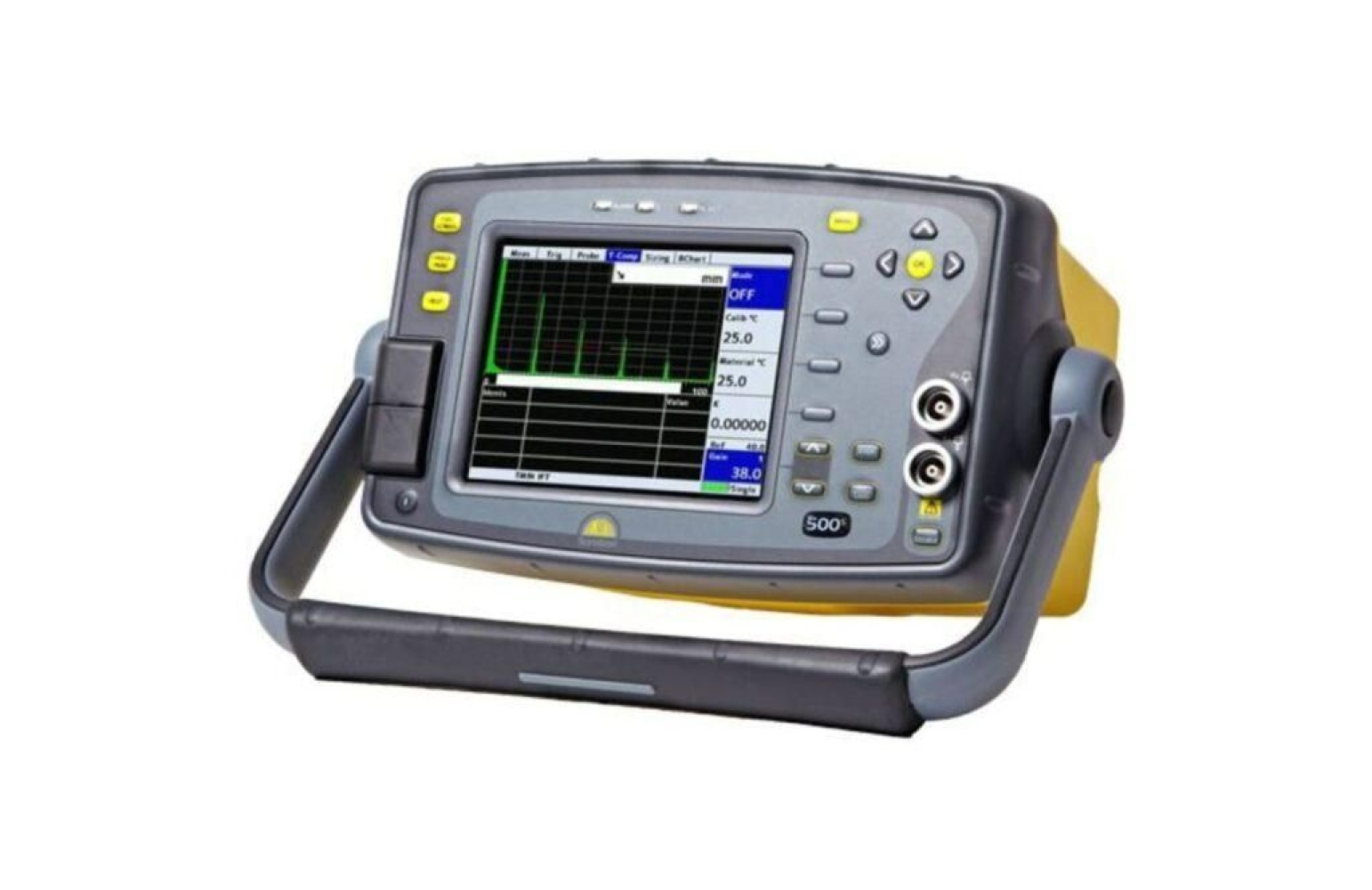

Sonatest Sitescan 500S

The Sitescan 500s offers the end user an entry level broad band flaw detector with full VGA display, sync and proportional outputs and a 50nS (Spike) 200V Pulser.

Typical applications are Weld Fabrication, Corrosion Detection, Forgings & Castings and general UT inspection.

Features

Rugged design: Engineered with automotive-grade, impact-resistant materials and water-resistant casing, ensuring robustness and field reliability

Advanced imaging and sizing capabilities: Supports a comprehensive set of industry-standard software options—like DAC, TCG, BEA, AWS, AVG/DGS, and API—offering flexibility across inspection standards (EN, ASME, AWS, API, etc.)

Data management: Can interface via USB as a memory device for file transfer; complimentary UT-Lity Lite software enables managing scans, thickness logs, calibrations, and generating reports; UT-Lity Pro offers enhanced inspection planning and data integration capabilities

Specifications

Function / Parameter	Specification
Measurement Modes	7 modes
Rectification	RF, Full wave, +ve half‑wave and –ve half‑wave
Waveform Smoothing	None, Fill and Smooth
AutoCal	Provides automatic calculation of velocity and probe zero from two reference echoes
Reference Waveform	Displays a previously stored A‑Log in a different colour from active display
Active Peak Memory	Retains all A‑Scans on screen for echo‑dynamic pattern analysis; active A‑Scan shown in separate colour
AGC (Automatic Gain Control)	Automatically sets Gate 1 to 10–90% FSH (tolerance 5–20%)
Connections	Encoder: D‑Sub 15 pin External Video: Yes Proportional Output: Yes External Sync: Yes USB: Internal storage
Transducer Sockets	BNC or LEMO (factory option)
Measurements	Gates: 2 DAC: Yes Split DAC: Option IFT: Option TCG: Option AVG/DGS: Option AWS: Option API: Option BEA: Option Corrosion T‑Log: Option Chart: Option
Transmitter	PRF: Adjustable 35 Hz to 1 kHz (external sync also available) Pulser (Voltage): 200 V fixed, 50 ns square wave Rise/Fall times: <15 ns into 50 Ω load
Receiver	Gain Range: 0–110 dB in multiple step sizes Filter Range: 1.0 MHz to 14 MHz (‑3 dB)
General	Battery Life: 10.5 Hours Display: Colour Transflective VGA (640 × 480) TFT Display area: 116.16 × 87.2 mm (4.57 × 3.43 in) A‑Scan Area: 400 × 510 px (normal), 460 × 620 px (FS) Dimensions: H 145 mm × W 255 mm × D 145 mm (5.7 × 10 × 5.7 in) Weight: 2.5 kg (5.5 lb) with battery IP Rating: Designed to meet IP67 Screen Colours: 9 options, variable brightness Operating Temp.: –10 °C to 55 °C (14 °F–131 °F) Storage Temp.: –40 °C to 75 °C (–40 °F–167 °F) Warranty: 2 year
