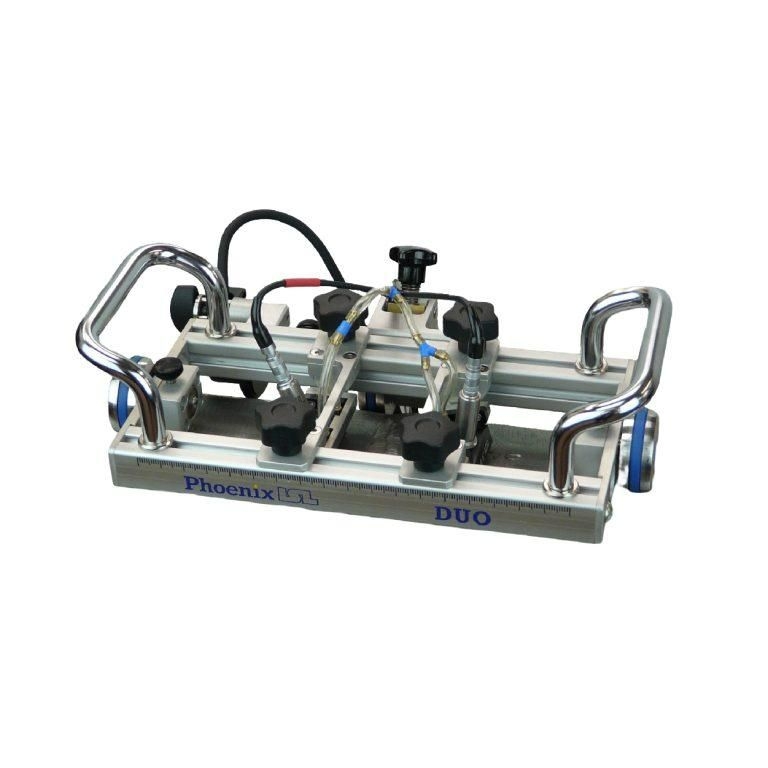

Compact TOFD Scanner

Designed to incorporate the most popular features of existing Phoenix TOFD scanners, Duo combines the benefits of simple, tool-less probe installation and adjustment with a sturdy frame complete with handles that ensure ease of operation and movement around pipes.

Engineered from durable, light-weight aluminum, Duo is suited to all on-site conditions, providing long-term repeatability.

Wedges snap in and out of the Duo scanner frame without the need to unscrew any parts. Probe separation is quick and simple to adjust with a graduated scale which allows accurate positioning whilst maintaining probe alignment. Equipped with three strong magnetic wheels that provide adhesion and accurate tracking, the scanner also incorporates tool-free adjustments for varying pipe sizes and a brake for hand repositioning, so is ideal for rope access inspections.

The Phoenix Duo frame is also available without wheels for a low-cost hand-held scanning solution. Economical yet packed full of features, Duo is a robust operator-friendly TOFD scanner for reliable on-site pipe weld inspections.

Standard Kit for Duo

• Duo scanning frame (with/out magnetic wheels – see order information)
• Waterproof wheel encoder
• Durable carry case

Features for Duo

• Robust, ergonomic frame
• Handles for ease of use
• Three magnetic wheels for adhesion and accurate tracking
• A brake for hand repositioning
• Quick release wedges
• Spring-loaded waterproof wheel encoder. IP68 rated
• Encoder Resolution: 65.6 steps/mm
• Graduated scale provides accurate probe positioning whilst maintaining alignment
• Lightweight: 1.25 kilograms
• Compact design: 240 x 180 x 80mm (with wheels) • Range: 2” OD up to flat

Benefits for Duo

• Solid construction for on-site conditions
• Fast tool-free adjustments
• Magnetic wheels provide adhesion and tracking capabilities
• Brake for hand repositioning
• Accurate and simple probe separation adjustment using a graduated scale
• Cost-effective, high-performance TOFD solution
• Low-cost option without wheels available
• Operates with any flaw detection system
