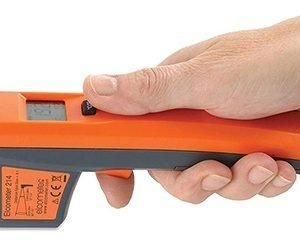

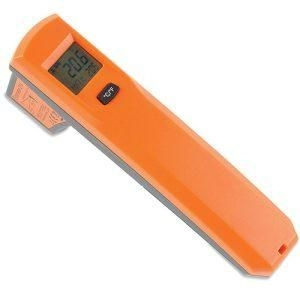

ELCOMETER 214 INFRARED DIGITAL LASER THERMOMETER (G214L—-3)

The Elcometer 214L Infrared Digital Laser Thermometer is a simple and easy to use, non-contact thermometer which safely and accurately measures the surface temperature of non-reflective materials using infrared technology.

---

With a user switchable measuring range of -35°C to 365°C or -31°F to 689°F, a digital display of the temperature is produced in less than one second.

• Non-contact technology with laser spot indicator
• °C / °F user switchable
• Fast, 1 second scanning of any surface
• Measure objects as small as 25mm (1”)
• Distance-to-Target Ratio of 8:1
• Easy to read LCD display

The Elcometer 214 IR Digital Laser Thermometer has a D/T ratio
(Distance-to-Target) of 8:1 and measures the emitted energy from a target spot one-eighth the size of the working distance.

Weight	0.113 kg
Dimensions	16.6 × 3.4 × 6.4 cm

Technical Specification

Part Number	Description
G214L—-3	Elcometer 214L Infrared Digital Laser Thermometer
Measuring Range	-35°C to 365°C (-31°F to 689°F)
Ambient Temperature	0 to 50°C (32 to 122°F)
Resolution	0.2°C (0.5°F)
Accuracy	±1.5°C (2.7°F)
Distance-To-Target	8:1, 25mm (1”) spot size
Emissivity	Fixed at 0.95
Response Time	1 second
Battery Type	2 x AAA batteries
Battery Life	14+ hours continuous use
Dimensions	166 x 34 x 64 (6.5 x 1.3 x 2.5”)
Weight	113g (3.98oz)
Packing List	Elcometer 214 Infrared Digital Laser Thermometer, 2 x AAA batteries (fitted), wrist strap and operating instructions.
