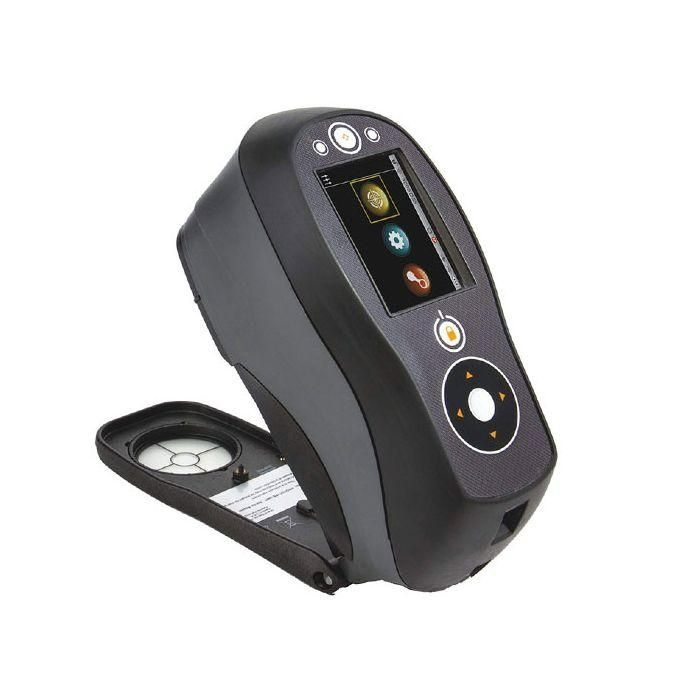

ELCOMETER 6085 Ci60 PORTABLE SPECTROPHOTOMETER, 220 – 240V (K6085M001)

The Elcometer 6085 is an affordable sphere spectrophotometer, designed to give fast, precise and accurate colour measurement information on materials ranging from paper and paint to plastics and textiles.

*Note: If you have any questions, need further information, or require assistance with other model’s price, please don’t hesitate to contact us.

For more details, please contact us on 03-3359 0375.

---

The Elcometer 6085 has the following features:

• Lightweight, compact and portable
• Diffuse/8° sphere optical geometry
• Fixed 8mm aperture
• Large, easy-to-read high resolution graphical colour LCD display
• Opacity and colour strength measurement
• Simultaneous measurement of both specular components included and specular component excluded
• Rugged construction
• Reliable detent lock
• Rechargeable battery for portable use

Weight	1.05 kg
Dimensions	10.9 × 9.1 × 21.3 cm

Technical Specification

Part Number	Description	Certificate
K6085M001	Elcometer 6085 Ci60 Portable Sphere Spectrophotometer
K6085M002	Elcometer 6085 Ci62 Portable Sphere Spectrophotometer
Measuring Geometrics	d/8°, DRS spectral engine, fixed 8mm aperture Simultaneous SPIN / SPEX
Light Source	Gas filled tungsten lamp
Illuminant Types	A, C, D50, D55, D65, F2, F7, F11 & F12
Standard Observers	2° and 10°
Spectral Range	400-700nm
Memory	1,000 standards with tolerances, 4,000 samples
Measurement Range	reflectance
Measuring Time	Approximately 2 seconds
Inter-Instrument Agreement (Ci60)	CIE L*a*b*: Avg. 0.40 ∆E*ab based on average of 12 BCRA Series II tiles (specular component included) Max. 0.60 ∆E*ab on any tile (specular component included)
Inter-Instrument Agreement (Ci62)	CIE L*a*b*: Avg. 0.20 ∆E*ab based on average of 12 BCRA Series II tiles (specular component included) Max. 0.40 ∆E*ab on any tile (specular component included)
Short-term Repeatability1	Ci60 – 0.10 ∆E*ab on white ceramic (standard deviation) Ci62 – 0.05 ∆E*ab on white ceramic (standard deviation)
Lamp Life	Approximately 500,000 measurements
Power Supply	Removable battery pack, 7.4 VDC, 2400 mAh
Measurements per Charge	1,000 measurements within 8 hour period
Weight	1.05kg (2.32lbs.)
Screen Display	3.2 inch backlit Colour Graphic LCD
Dimensions	109 x 91 x 213mm (4.3 x 3.6 x 8.4”)
Packing List	Elcometer 6085 Ci60, calibration standards, calibration certificate for standards, AC adaptor, mains leads (UK & EUR), carry case & operating instructions
Packing List	Elcometer 6085 Ci62, calibration standards, calibration certificate for standards, AC adaptor, mains leads (UK & EUR), carry case & USB cable, operating instructions

Standards

AS/NZS 1580.601.3, ASTM C 609, ASTM D 2244, ASTM E 1164, ASTM E 308, ASTM E 313, BS 8493, DIN 5033-2, DIN 5033-3, DIN 5033-4, DIN 5033-7, DIN 6174, EN 12373-12, EN 13523-15, ISO 7724-2, ISO 7724-3, JIS K 5600-4-5, JIS K 5600-4-6, NF T36-006, NF X08-012-1, NF X08-012-2
