SET OF 13 MANDRELS ON A STAND- ASTM – METRIC (K0001500M002)

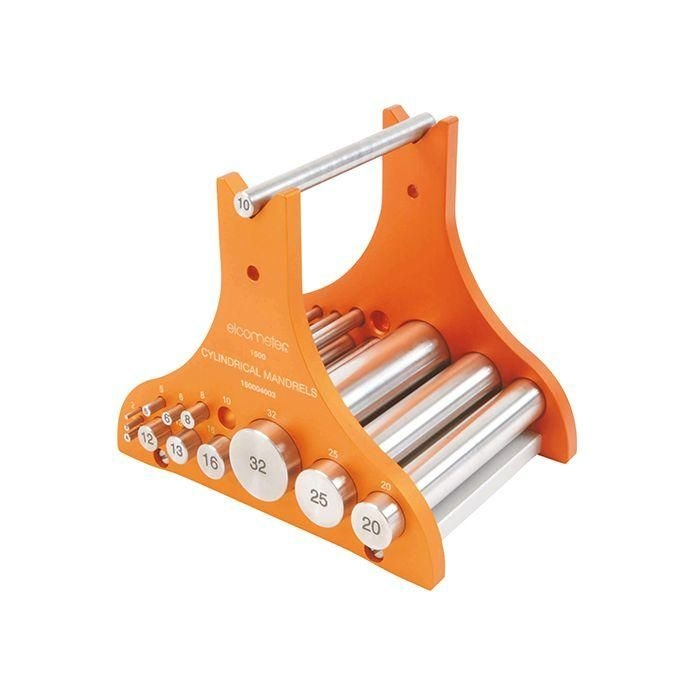

The Elcometer 1500 Cylindrical Mandrel on a stand is a simple instrument for determining the elasticity, adhesion and cracking of dry paint on flat specimens, consisting of mandrel support which also serves as a test stand.

*Note: If you have any questions, need further information, or require assistance with other model’s price, please don’t hesitate to contact us.

For more details, please contact us on 03-3359 0375.

---

Coated metal sheets, maximum 150mm (5.9”) in length x 100mm (3.93”) wide, are manually and successively bent around mandrels of decreasing diameter until cracks appear.


Weight	3.3 kg
Dimensions	17.8 × 13.8 × 14.5 cm

Technical Specification

Part Number	Description
K0001500M002	Elcometer 1500/2 Metric Set of 13 Cylindrical Mandrels on a stand from 2 to 32mm
K0US1500M001	Elcometer 1500/1 Imperial Set of 7 Mandrels from ⅛” to 1”
Mandrel Size	Imperial Version: ⅛, ¼, ⅜, ½, ⅝, ¾, 1”
Mandrel Size	Metric Version: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 20, 25, and 32mm
Dimensions	178 x 138 x 145mm (7 x 5.3 x 5.7”)
Weight	3.3kg (7.26lb)
Packing List	Set of 7 mandrels (Elcometer 1500/1), set of 13 mandrels (Elcometer 1500/2) and operating instructions
