Elcometer 1615 Variable Impact Tester Kits

Elcometer 1615 Variable Impact Tester Kits

Category: Elasticity, Bend & Impact Testers
Specifications
Kuala Lumpur | Selangor | Shah Alam | Klang | Petaling Jaya | Subang Jaya | Cyberjaya | Rawang | Kajang | Bangi | Port Klang | Pulau Indah | Johor Bahru | JB | Pasir Gudang | Pengerang | Kulai | Batu Pahat | Muar | Kluang | Melaka | Bukit Rambai | Sungai Udang | Masjid Tanah | Alor Gajah | Nilai | Seremban | Senawang | Ipoh | Taiping | Penang | George Town | Batu Kawan | Bayan Lepas | Bukit Mertajam | Perai | Kulim | Sungai Petani | Kuantan | Gebeng | Kemaman | Kuala Terengganu | Kota Bharu | Kuching | Bintulu | Miri | Sibu | Kota Kinabalu | Labuan | Brunei Variable Impact Tester | Impact Resistance Tester | Coating Impact Tester | Coated Panels | Painted Surfaces | Powder Coatings Impact Resistance Testing | Coating Durability Assessment | Paint Performance Testing | Mechanical Property Testing | Protective Coatings | Material Evaluation Impact Test | Falling Weight Test | Direct Impact Test | Reverse Impact Test | Coating Inspection | Laboratory Testing Paint & Coatings | Automotive | Aerospace | Manufacturing | Industrial Finishing | Metal Processing | Quality Control
Details

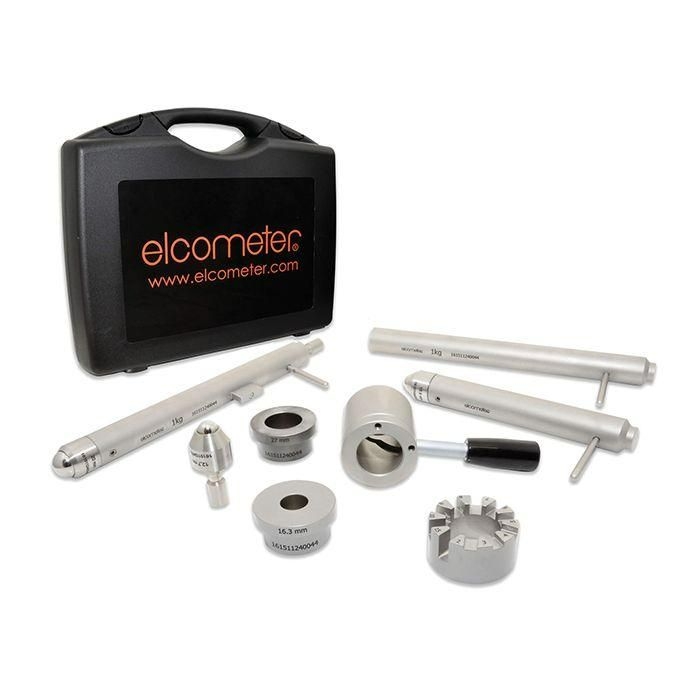

The Elcometer 1615 Impact Tester comes as one universal assembly with the option of seven different kits providing the functionality for various impact testing methods.

In order to test a sample in accordance with a specified standard, a number of kits have been created to provide a single Impact Tester which, by using the appropriate kit, allows the user to work in accordance with a wide range of National and International standards.

Technical Specification

Part Number Description Certificate
KT001615KITA Elcometer Impact Tester Kit A Optional Calibration Certificate available
KT001615KITB Elcometer Impact Tester Kit B Optional Calibration Certificate available
KT001615KITC Elcometer Impact Tester Kit C Optional Calibration Certificate available
KT001615KITD Elcometer Impact Tester Kit D Optional Calibration Certificate available
KT001615KITE Elcometer Impact Tester Kit E Optional Calibration Certificate available
KT001615KITF Elcometer Impact Tester Kit F Optional Calibration Certificate available
KT001615KITG Elcometer Impact Tester Kit G Optional Calibration Certificate available
Packing List Kit A: Falling 1kg (2.2lb) weight with a 20mm (0.79”) punch; 27mm (1.06”) die with fixing screw; sample clamp with two fixing screws; stop collar*; 3mm (0.12”) and 4mm (0.16”) hexagonal wrench



Kit B: Falling 1kg (2.2lb) weight with static indenter with 15.9mm (0.6”) punch; 12.7mm(0.5”) punch; 16.3mm (0.64”) die with fixing screw; 3mm (0.12”) hexagonal wrench

Kit C: Falling 2lb (908g) weight with static indenter with 15.9mm (0.6”) punch; 16.3mm (0.64”) die with fixing screw; 3mm (0.12”) hexagonal wrench

Kit D: Falling 1kg (2.2lb) weight with 20mm (0.79”) punch and stop key; 27mm (1.06”) die with fixing screw; stop collar*; sample clamp with fixing screws; 3mm (0.12”) and 4mm (0.16”) hexagonal wrench

Kit E: Falling 400g (0.9lb) weight with 23mm (0.90”) punch; 22mm (0.87”) die with fixing screw; 3mm (0.12”) hexagonal wrench

Kit F: Falling 1kg (2.2lb) weight with a 20mm (0.79”) punch; 27mm (1.06”) die with fixing screw; Falling 1kg (2.2lb) weight with 12.7mm (0.5”) punch; sample clamp with two fixing screws; 16.3mm (0.64”) die with fixing screw; stop collar*; static indenter with 15.9mm (0.6”) punch; 3mm (0.12”) hexagonal wrench; 4mm (0.16”) hexagonal wrench

Kit G: Falling 1kg (2.2lb) weight with a 15.9mm (0.62”) static indenter with handle and punch; 12.7mm (0.5”) static indenter with handle and punch; 16.3mm (0.64”) die with fixing screw; guide bracket with two fixing screws; 3mm (0.12”) hexagonal wrench; 4mm (0.16”) hexagonal wrench
