Details

---

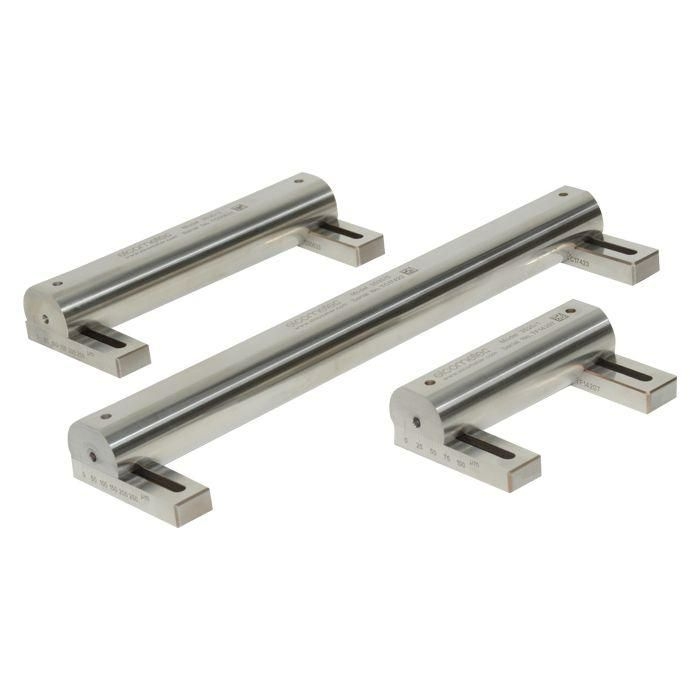

The Elcometer 3525 & 3530 Adjustable Baker Film Applicators are manufactured using the very latest machining techniques to ensure outstanding accuracy.

The Elcometer 3525 & 3530 allow’s the user to select the specific gap size required. The coating thickness gap size can be set to produce either a uniform film or a film wedge. Each film applicator has thickness markings down each side for fast set up.

Available in two gap size ranges and a number of film widths, these stainless steel applicators can be used manually or with the Elcometer 4340 Motorised Film Applicator.

Technical Specification

Part Number	Model	Film Thickness		Film Width*
Metric		μm	mils	mm	inches
K0003525M001	Elcometer 3525/1 Adjustable Baker Film Applicator	0 – 100	–	50	–
K0003525M002	Elcometer 3525/2 Adjustable Baker Film Applicator	0 – 100	–	75	–
K0003525M003	Elcometer 3525/3 Adjustable Baker Film Applicator	0 – 100	–	100	–
K0003525M004	Elcometer 3525/4 Adjustable Baker Film Applicator	0 – 100	–	150	–
K0003525M005	Elcometer 3525/5 Adjustable Baker Film Applicator	0 – 100	–	200	–
K0003525M006	Elcometer 3525/6 Adjustable Baker Film Applicator	0 – 100	–	250	–
K0003530M001	Elcometer 3530/1 Adjustable Baker Film Applicator	0 – 250	0 – 10	50	2
K0003530M002	Elcometer 3530/2 Adjustable Baker Film Applicator	0 – 250	0 – 10	75	3
K0003530M003	Elcometer 3530/3 Adjustable Baker Film Applicator	0 – 250	0 – 10	100	4
K0003530M004	Elcometer 3530/4 Adjustable Baker Film Applicator	0 – 250	0 – 10	150	6
K0003530M005	Elcometer 3530/5 Adjustable Baker Film Applicator	0 – 250	0 – 10	200	8
K0003530M006	Elcometer 3530/6 Adjustable Baker Film Applicator	0 – 250	0 – 10	250	10
