Details

---

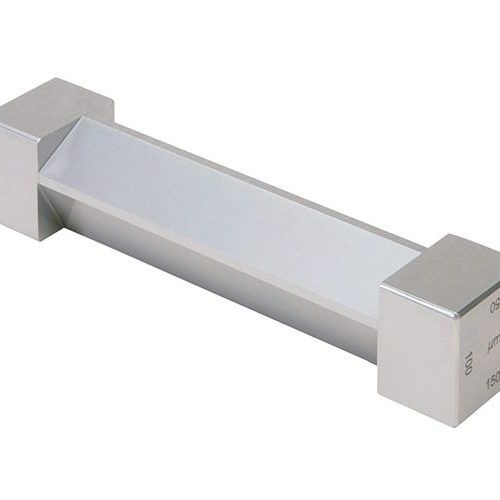

The Elcometer 3540 Four Sided Film Applicators are easy to clean gauges manufactured to the highest accuracy.

These precision ground stainless steel Four Sided Film Applicators have 4 thicknesses per applicator each with a flat edged prismatic body making them suitable for coatings applied to a flat and relatively strong substrate.

Available in a range of film widths and can be used with the Elcometer 4340 Motorised Film Applicators.

Technical Specification

Part Number	Model	Film Thickness		Film Width*
Metric		μm	mils	mm	inches
K0003540M001	Elcometer 3540/1 Four Sided Film Applicators	50, 100, 150, 200	2, 4, 6, 8	50	2
K0003540M002	Elcometer 3540/2 Four Sided Film Applicators	50, 100, 150, 200	2, 4, 6, 8	75	3
K0003540M003	Elcometer 3540/3 Four Sided Film Applicators	50, 100, 150, 200	2, 4, 6, 8	100	4
K0003540M004	Elcometer 3540/4 Four Sided Film Applicators	50, 100, 150, 200	2, 4, 6, 8	150	6
K0003540M005	Elcometer 3540/5 Four Sided Film Applicators	50, 100, 150, 200	2, 4, 6, 8	200	8
K0003540M006	Elcometer 3540/6 Four Sided Film Applicators	50, 100, 150, 200	2, 4, 6, 8	250	10
