Details

---

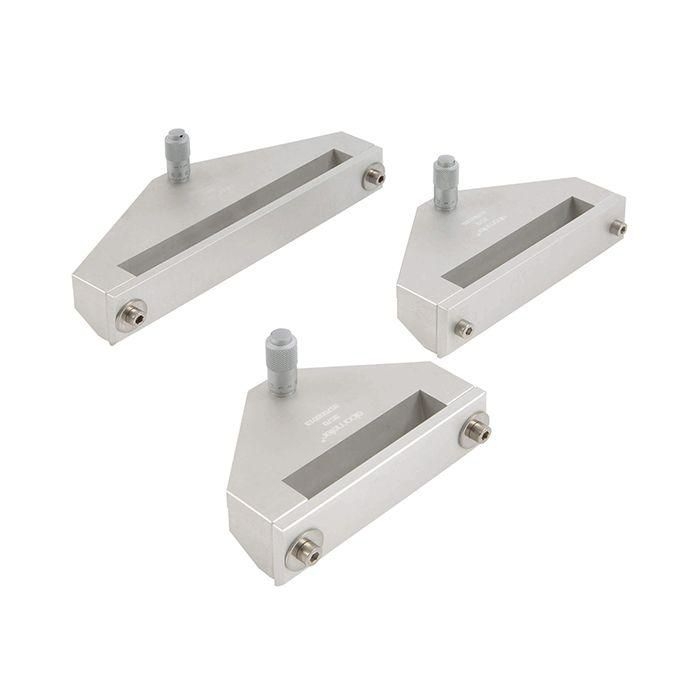

The Elcometer 3570 Micrometric Film Applicator is made of anodised aluminium with a reservoir and a bevelled blade applicator body and is suitable for high-precision manual application of high viscosity fluids onto relatively firm substrates.

The gap can be adjusted, in 1micron intervals, from 0 to 1mm by the inclination of the device, using a micrometric screw. The total width of the applicator can be calculated by adding 36mm (1.4”) to the film width of the applicator.

Technical Specification

Part Number	Model	Film Thickness	Film Width*
Metric		μm	mm	inches
K0003570M201	Elcometer 3570/1 Micrometric Film Applicator	0 – 1000	75	3
K0003570M002	Elcometer 3570/2 Micrometric Film Applicator	0 – 1000	100	4
K0003570M003	Elcometer 3570/3 Micrometric Film Applicator	0 – 1000	150	6
K0003570M004	Elcometer 3570/4 Micrometric Film Applicator	0 – 1000	200	8
