Details

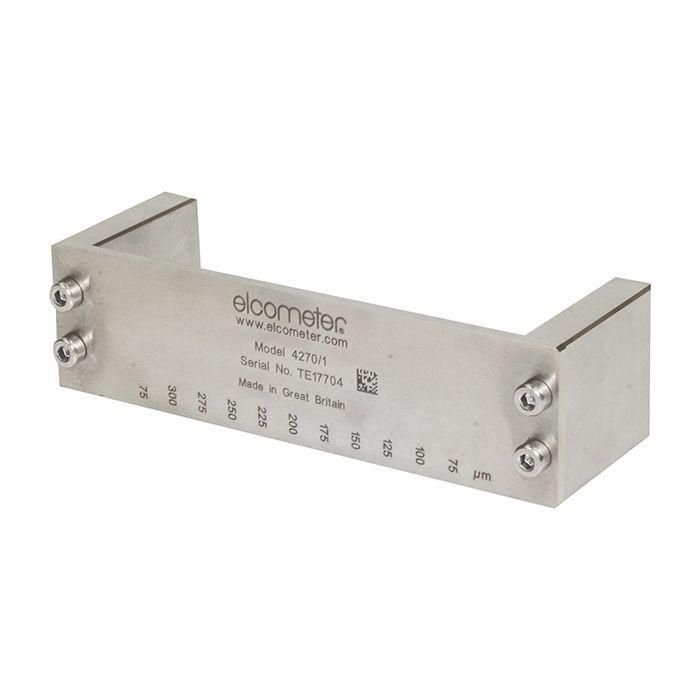

The Elcometer 4270 Sag Tester is used to establish a coating’s resistance to sag due to gravity.
Made from stainless steel, the straight scraper has 11 notches of increasing clearance.
A contrast chart is immediately placed in a vertical position with the thinnest film at the top.
Technical Specification
| Part Number | Description | Range | Notch Depth | ||
| Metric | μm | mils | μm | mils | |
| K0004270M001 | Elcometer 4270/1 Sag Tester* | 75 – 300 | 3 – 12 | 75, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300 | 3, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| K0004270M203 | Elcometer 4270/3 Sag Tester* | 350 – 1500 | 14 – 60 | 350, 400, 450, 500, 620, 750, 875, 1000, 1125, 1250, 1500 | 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 60 |
| K0004270M204 | Elcometer 4270/4 Sag Tester* | 100 – 600 | 4 – 24 | 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600 | 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24 |
View more about Elcometer 4270 Sag Tester on main site
