Details

---

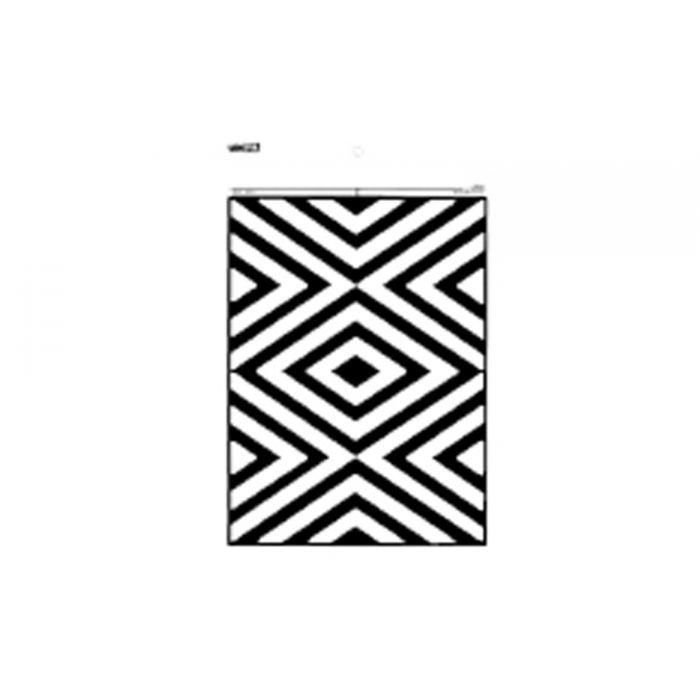

The Elcometer 4695 Display/Spreading Rate Charts employ time-tested, diagonally striped patterns, having a strong visual impact that emphasises variations in film opacity.

The Display/Spreading Rate Charts are frequently used for hiding power display purposes, by means of drawdowns or brushouts.

Spreading Rate Charts (Form 8H) are accurately 0.1 square metres (approximately one square foot) in area and are used in brushout hiding tests at specified spreading rates as described in ASTM Method D 344.

Technical Specification

Part Number		Description	Chart Dimensions		Box Weight	Quantity	Boxes
Box	Case		mm	inches		per Box	per Case
Card Thickness
K0004695M022	K0004695M222	Leneta Chart 8B	194 x 289	7⅝ x 11⅜	4.08kg (9lb)	250	4
Card Thickness
K0004695M023	–	Leneta Chart 8H	286 x 438	11¼ x 17¼	5kg (11lb)	125	–
