Details

---

In a typical scrub test, the coating is applied to the Leneta Scrub Test Panel at a specified film thickness, allowed to dry and then subjected to scrubbing with a straight-line scrub tester.

When used in accordance with ASTM D2486, Method A, a 10mil shim is inserted under the panel to accelerate failure and thereby reduce testing time. The scrub resistance is the number of scrub cycles required to remove the coating to a specified endpoint.

Alternatively, the loss in weight is determined after a specified number of scrub resistance cycles, with a calculation of equivalent loss in film thickness.

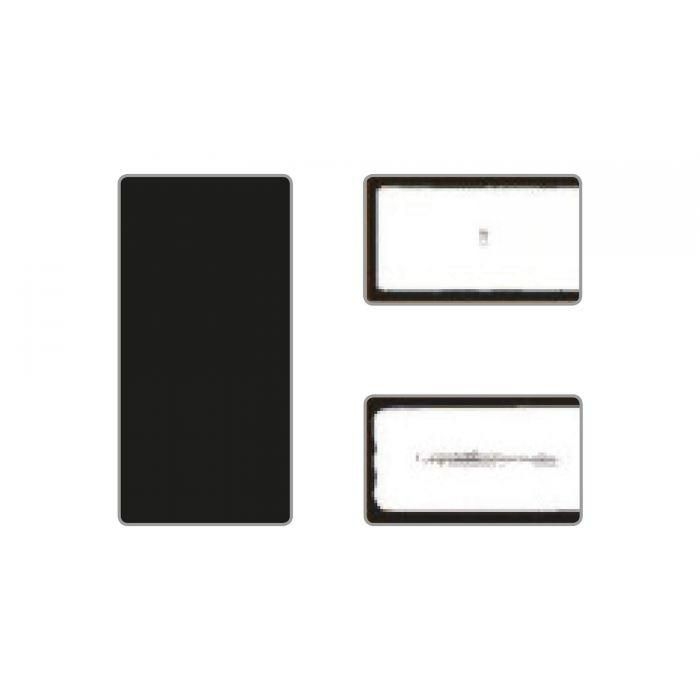

These Scrub Test Panels are ideal for use with the Elcometer 1720 Washability & Abrasion Testers.

Technical Specification

Part Number		Description	Chart Dimensions		Quantity	Boxes
Box	Case		mm	inches	per Box	per Case
K0004695M068	K0004695M268	Black Scrub Test Panel P121-10N	165 x 432	6½ x 17	100	5
K0004695M069	K0004695M269	White Scrub Test Panel P123-10N	165 x 432	6½ x 17	100	5
