Details

---

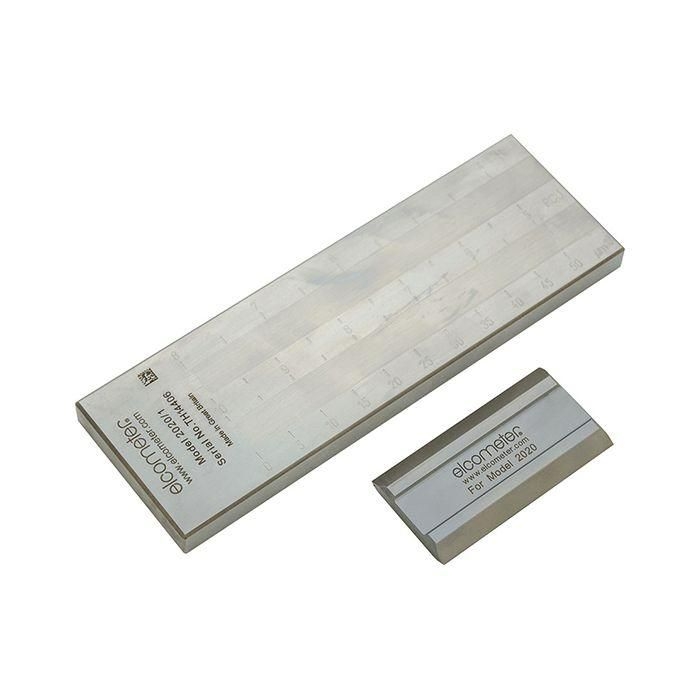

The Elcometer 2020 Fineness of Grind Gauges is used to determine the particle size and fineness of grind of many materials including paints, pigments, inks, coatings, chocolates and other similar products.

These two channel gauges, are made of hardened stainless steel and have two grooves with a graded slope (dependent on the model chosen).

Graduated in microns, mils, NS (Hegman) or PCU (North), the gauges have an accuracy of ±3μm (0.12mil) or ±5% whichever is the greater. The groove width for all models is 12mm (0.47”) with a groove length of 127mm (5.0”).

Technical Specification

Part Number		Model	Range		Graduation		Hegman	Paint Club	Certificate
Metric	Imperial		(μm)	(mils)	(μm)	(mils)	(NS or H)	(PCU)
K0002020M003	–	Elcometer 2020/3	0 – 15	–	1.5	–	8 – 7	10 – 9
K0002020M004	K0US2020M004	Elcometer 2020/4	0 – 25	0 – 1	2.5	0.1	8 – 6	10 – 8
K0002020M001	K0US2020M001	Elcometer 2020/1	0 – 50	0 – 2	5	0.2	8 – 4	10 – 5
K0002020M002	K0US2020M002	Elcometer 2020/2	0 – 100	0 – 4	10	0.5	8 – 0	10 – 0
Packed Dimensions	180 x 40 x 12mm (7.1 x 1.6 x 0.5”)
Packed Weight	1.36kg (3lb)
Packing List	Elcometer 2020 Fineness of Grind Gauge, scraper, plastic case and operating instructions
