Details

---

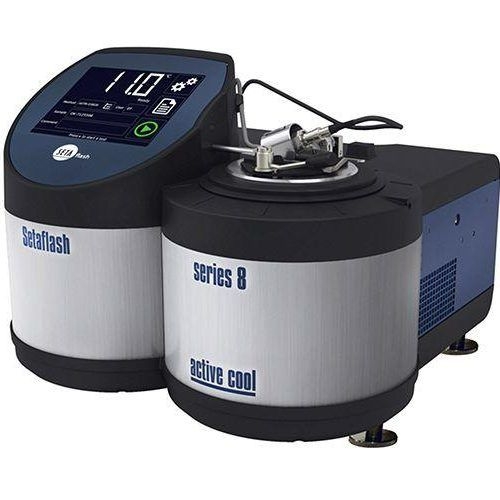

The Elcometer 6910 Setaflash ‘Series 8’ Active-Cool (Corrosion Resisting) offers the same feature as the Active Cool Closed Cup Tester but comes with a corrosion resisting insert in the cup for testing corrosive samples.

It has been designed to carry out flash/no flash tests with a temperature range of 10°C to 130°C (50°F to 266°F) with no external cooling required. When connected to a suitable chilled water supply, the range is extended down to -20°C (-4°F).

There is also the Ramp Mode which increases the sample temperature at the rate of 2°C/min and automatically dips the ignitor every 1°C up to 100°C (every 2°C above 100°C), until either a flash is detected or the end of test temperature is reached.

• Small sample size, 2ml (0.067fl oz) or 4ml (0.135fl oz)
• Flash/No Flash & Ramp Modes
• Electric ignitor
• Automatic dipping and flash detection
• ActiveCool electronic Peltier cooling
• 64 test memory & USB port
• Corrosion resisting insert

Technical Specification

Part Number	Description	Certificate
K6910M022	Elcometer 6910 Setaflash ‘Series 8’ Active-Cool (Corrosion Resisting)
Temperature Range	-30°C to 135°C (-22°F to 275°F)
Sample Size	2ml (0.067fl oz) or 4ml (0.135fl oz) according to method
Test Modes	Rapid Equilibrium and Ramp
Test Duration Rapid Equilibrium Mode	1 minute below 100°C (212°F), 2 minutes above 100°C (212°F), FAME 1 minute or user defined 1 to 99 minutes
Test Duration Ramp Mode	Typically 7 minutes
Cool Down Time	80°C to 20°C (176°F to 68°F) in 4 minutes
Cup Material	Corrosion Resistant Steel Insert, Aluminium Cup
Dimensions	300 x 340 x 380mm (11.8 x 13.4 x 15.0”)
Weight	8kg (17.6lb)
Packing List	Elcometer 6910 Setaflash ‘Series 8’ Active-Cool (Corrosion Resisting), 2ml (0.067fl oz) syringe, flash detector, mains power cable, programming plug, 2mm Allen key, 2.5mm Allen key, certified flash point material (50ml/1.7fl oz), certificate of calibration, warranty registration form and operating instructions
