Details

---

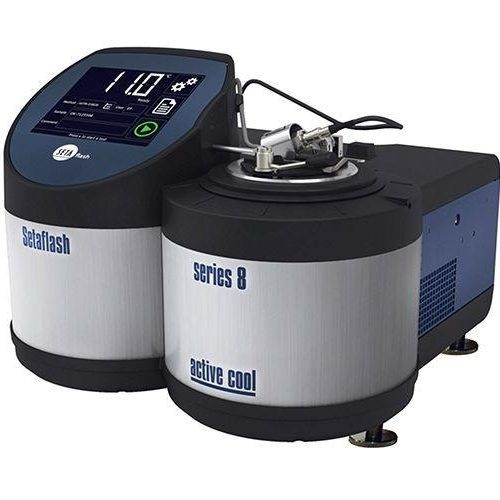

The Elcometer 6910 Setaflash ‘Series 8’ Active-Cool Closed Cup Tester offers the same features as the Setaflash ‘Series 8’ Closed Cup Tester but is designed with a temperature range of -30°C to 135°C (-22°F to 275°F) with no external cooling required.

This Active Cool Closed Cup Tester uses the Peltier cell technology for heating and cooling, ensuring precise temperature control and rapid cool down after a test is completed.

When connected to a suitable water supply, the temperature range is extended down to -20°C (- 4°F) and operates with an electric ignition.

• Small sample size, 2ml (0.067fl oz) or 4ml (0.135fl oz)
• Flash/No Flash & Ramp Modes
• Electric ignitor
• Automatic dipping and flash detection
• Active-Cool electronic Peltier cooling
• 64 test memory & USB port

Technical Specification

Part Number	Description	Certificate
K6910M021	Elcometer 6910 Setaflash ‘Series 8’ Active-Cool Closed Cup Tester
Temperature Range	-30°C to 135°C (-22°F to 275°F)
Sample Size	2ml (0.067fl oz) or 4ml (0.135fl oz) according to method
Test Modes	Rapid Equilibrium and Ramp
Test Duration Rapid Equilibrium Mode	1 minute below 100°C (212°F), 2 minutes above 100°C (212°F), FAME 1 minute or user defined 1 to 99 minutes
Test Duration Ramp Mode	Typically 7 minutes
Cool Down Time	80°C to 20°C (176°F to 68°F) in 4 minutes
Cup Material	Aluminium
Dimensions	300 x 340 x 380mm (11.8 x 13.4 x 15.0”)
Weight	8kg (17.6lb)
Packing List	Elcometer 6910 Setaflash ‘Series 8’ Active-Cool Closed Cup Tester, 2ml (0.067fl oz) syringe, ignitor, mains power cable, programming plug, 2mm Allen key, 2.5mm Allen key, certified flash point material (50ml/1.7fl oz), certificate of calibration, warranty registration form and operating instructions
