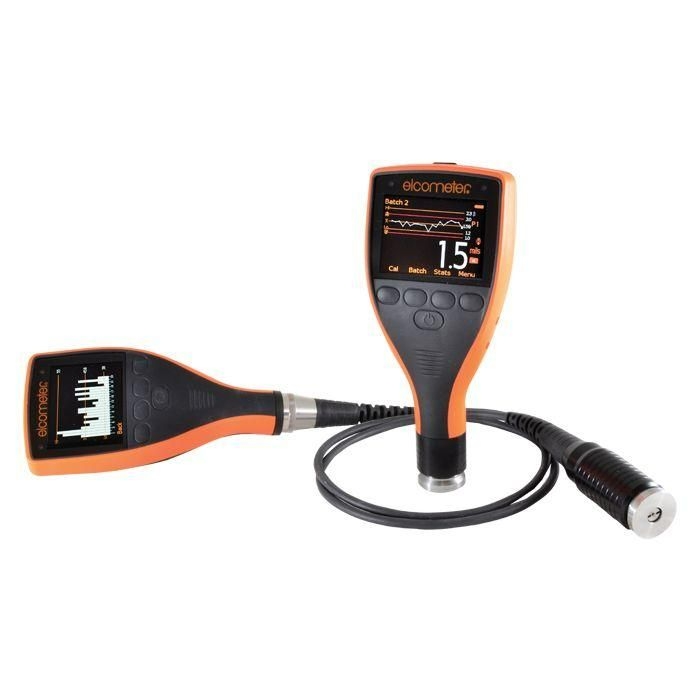

The Elcometer 224 Digital Surface Profile Gauge provides the very latest in surface profile measuring technology for measuring surface profile on either flat or curved surfaces.

• Fast and reliable peak-to-valley surface profile measurement
• Accurately measure surface profile on flat or curved surfaces up to 500μm (20mils)
• Measures both average peak-to-valley and average maximum peak-to-valley height
• Portable, rugged hand-held design is ideal for field use

The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile meter provides the user with increasing functionality – from the entry level Elcometer 224 DModel B Surface Profile Gauge, to the top of the range Elcometer 224 Model T Surface Profile Gauge, with memory, alpha-numeric batching and Bluetooth^® communication.

Standard and armoured probes are available for the separate models, providing even greater measurement flexibility.  Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm (5.0mils) & 500µm (20mils)) and an Elcometer Test Certificate.

Accurate Surface Profile Measurements


• Can be used in accordance with National and International Standards
• Temperature stable measurements
• Statistics are calculated and displayed in real time during inspection
• Live and batch readings graph format for instant analysis
• Measurement capability to ±5%

A Powerful Surface Profile Gauge

• User replaceable tough tungsten carbide tip, can be used for up to 20,000 surface profile readings
• USB and Bluetooth^® data output to iPhone¹ or Android™ devices
• Measures surface profiles up to 500μm (20mils)
• Review batch data or last 20 readings in a graph format
• Integral & separate probe options for flat and convex² curved surface

Efficient Inspections

• Fast reading rate of 50+ per minute
• Integral and separate probe versions to suit your application
• Alpha numeric batch identification
• Compatible with ElcoMaster^® software and ElcoMaster^® Mobile App
• Powersave Mode with tap awake
