Details

---

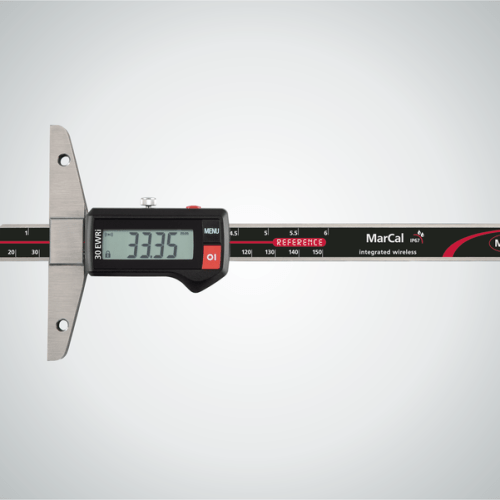

Digital depth gage MarCal 30 EWRi
Measuring range mm: 0 – 200 mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Data interface: Integrated Wireless
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case

Code No.: 4126754


Weight	2 kg
Dimensions	33 × 15 × 4 cm

Product Information

• High contrast digit display
• Locking screw above
• Lapped guideway
• Measuring surfaces made of steel
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide

Technical Data

Measuring range mm	0 – 200
Measuring range inch	0 – 8″
Resolution mm/inch	0.01 / .0005″
Error limit (mm)	0.03 mm
Error limit inches	.001″
Standard	ISO 13385-2
Battery type	CR 2032 (3V Lithium)
Dimensions	a 284 mm | b 100 mm |
