Code No.: 6910404

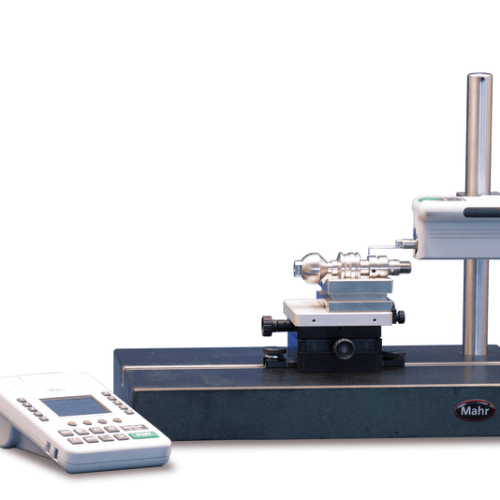

MarSurf M 400 / C. The best of the “mobile” devices

• Both in the measuring room and increasingly also in the production area, there is a need for surface evaluations requiring skidless tracing.
• This generally requires more highly skilled operators, more time and more adjustment work.
• Within the “mobile surface metrology” range, MarSurf M 400 provides the necessary range of functions, while at the same time being quick and easy to use.

Technical Data

IP protection category	IP 40
Positioning speed	0.5; 1.0
Measuring principle	Stylus method
Probe	BFW skidless system
Measuring range mm	+/- 250 µm (up to +/- 750 µm with 3x probe arm length)
Profile resolution	Measuring range +/- 250 µm: 8 nm Measuring range +/- 25 µm: 0.8 nm
Filter according to ISO/JIS	Gaussian filter as per ISO 11562 Filter as per ISO 13565
Cutoff Ic according to ISO/JIS	0,08 mm , 0,25 mm , 0,8 mm , 2,5 mm , automatical , variable
Number n of sampling length according to ISO/JIS	1-5
Contacting speeds	0.2 mm/s; 1.0 mm/s
Stylus	2 µm
Measuring force (N)	0.75 mN
Weight drive unit	approx. 0.9 kg
Weight measuring instrument	approx. 1.0 kg
Surface parameters	Over 50 surface parameters for R, P and W profiles according to current ISO/JIS or MOTIF standards (ISO 12085)

Applications

Mechanical engineering

• Bearings, shafts, racks, valves

Automotive

• Steering, brake system, gearbox, crankshaft, camshaft, cylinder head, cylinder block, turbocharger

Steel industry

• Measurement of sheet metal surfaces
• Measurement of roller surface

Medicine

• Surface roughness measurement for hip and knee endoprostheses

Aerospace

• Turbine components
