Details

---

T max. 1300 °C and 1400 °C

For high demands

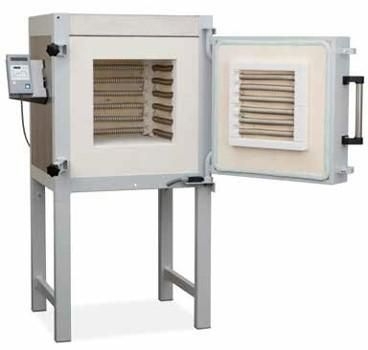

Classical chamber furnaces for demanding laboratory applications e.g. in pilot plants for simulations of production processes.

• Double-walled design with rear ventilation, extremely low outside wall temperature
• Durable housing with stainless steel side panel and robust painted steel frame, stainless steel lintel
• Hinged door with door safety switch, hinged on right side
• Multi-layer insulation (lightweight refractory bricks and rear insulation), low heat loss, low energy consumption, low electricity costs
• Heating from 5 sides (left, right, door, rear wall, floor), very even temperature distribution in the furnace chamber
• Heating elements mounted on ceramic support tubes, in front of the furnace wall, free heat radiation into the furnace chamber.
• Floor heating elements covered with heat permeable silicon carbide plates, high mechanical load capacity, protection for floor heating
• Base frame already included in standard scope of delivery
• Air inlet opening in the furnace floor, exhaust air opening with exhaust chimney at the rear wall of the furnace, both operable from the front
• Controller mounted on the side of the furnace housing, convenient operation
• Also available as production furnace for larger batches, e.g. as bogie hearth or chamber furnace with individual dimensions and temperatures

Additional equipment

• Parallel swing door, user is protected from hot door insulation surface
• Door hinges left instead of right side
• Multi-zone control
• Motorized supply and exhaust air flaps for ventilation, automati- cally switched via the controller‘s event function
• Fan for rapid cooling of the oven chamber
• Prepared for inert gas operation
• Manual or automatic gas feed systems
• Batching systems and stackable batch carriers
• Exhaust air purification systems
