Details

---

T max. 650 °C and 850 °C

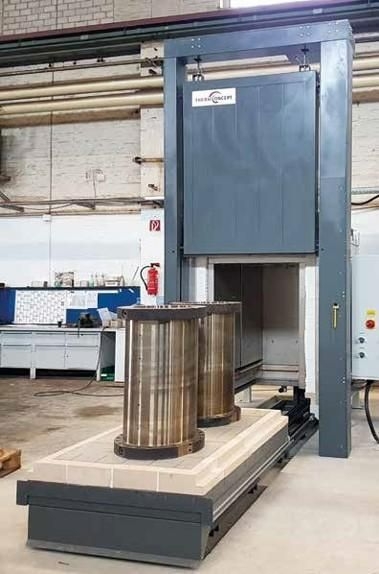

• These bogie hearth furnaces are particularly suitable for the heat treatment of large batches with high work load.
• Vertical air flow, optimum temperature distribution inside the usable dimensions of up to +/-5 K according to DIN 17052
• Furnaces for maximum temperatures of 650 °C and 850 °C
• Robust housing design and inner housing made of heat-resistant stainless steel

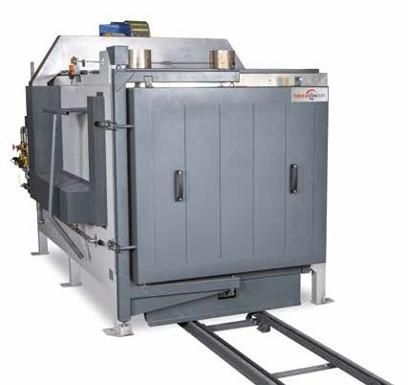

• Furnace door in the standard version designed as parallel guided swing door
• Strong bogie equipped with flanged wheels on rails incl. rails in front of the furnace, bogie completely covered with stainless steel plates
• High-quality, multi-layer insulation for low heat losses and low power consumption
• Powerful air-circulation fans in the furnace ceiling
• Manual exhaust air flaps

Options:

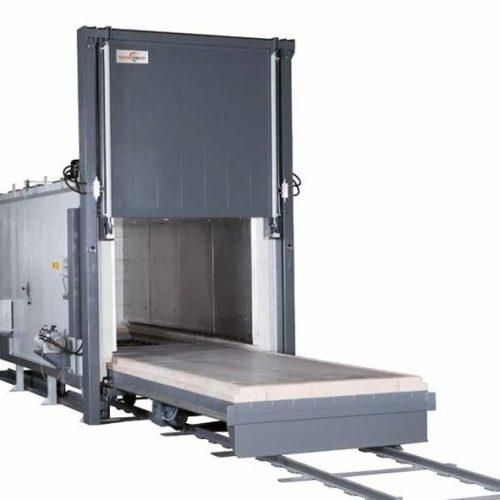

• Lift door with electric or hydraulic drive
• Automatic fresh air and exhaust air flap control for furnace venting and faster cooling
• Automatic cooling system for forced cooling
• Electric bogie drive
• 2. bogie
• Furnace installation with transverse shunting track for several bogies and parking rails
• Second door on the rear wall of the furnace for operation with two bogies
• Custom-made designs
• Support grate for bogie made of heat-resistant cast steel for optimum load distribution
• Bogie hearth furnaces also available gas-heated
