Details

---

• For operational temperature over 350˚C
• Heat insulation with an air jacket type chamber structure
• Stainless Steel Internal Chamber with shelves
• Licensed with Registered Utility Model
• Durable structure against continuous operation
• Safety assurance with C.E conformity

• Accessory

– Movable stainless perforated shelves 2EA

• Option

– Programmable controller

– Digital recorder

– 2CH Hybrid recorder

• Safety Device

– Automatic reset function incoming power cut

– Buzzer on when set time arrived

– Door open alarm

– Electric leakage breaker

– Over temp function

– Fire safety controller

Specification

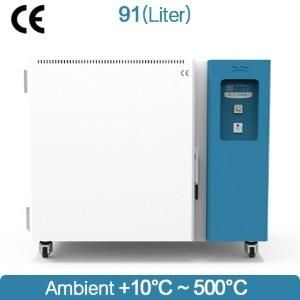

Model	SH-DO-90FS
Air Circulation type	Forced
Temp Range	Ambient +10℃ to 500℃ (Ambient +18℉ to 932℉)
Time Range	00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer
Temp & Time controller	Microprocess PID Membrane Touch Digital controller
Heater Capa	3300 W
Dimension Internal (W×D×H)	450×450×450mm   17.72×17.72×17.72”
Dimension External   (W×D×H)	1196x700x925mm 47.09×27.56×36.41”
Weight	190 kg
Capa	91 L
Material Internal	Stainless Steel
Material External	Steel Plate With Powder Heating Coated
Shelves	2 Supplied (12 Maximum)
Electrical Requirements   120V ,50/60Hz, 1Φ	38.2 A
Cat. No.	DO90FS120
Electrical Requirements   230V,50/60Hz, 1Φ	18.3 A
Cat. No.	DO90FS230



Feature

This version of the forced convection drying oven is suitable for samples that need to be treated and/or hardened under a high amount of temperature than 300˚C. Furthermore, this model comes with improved insulation and structure, specially designed to ensure customer’s safety.

• Steel plate with powder heating coated
• Digital PID controller
• Surface finished stainless steel
• Leveling feet
• Safety devices
• Door sealing gasket

Drying Ovens

Drying oven is an equipment which is widely used in laboratories and other related industries. The main function of a Drying oven is to a constant temperature for a certain set period. Drying oven can be classified into two types, depending on the air circulation; forced air circulation and natural air circulation.
