Suspension Testing System | Impact Testing Equipment | Road Response Analysis System | Vibration Testing System
Suspension evaluation | Road response analysis | Impact testing | Ride comfort assessment | Dynamic performance evaluation
Impact hammer test | Road simulation testing | Vibration response measurement | Shock response analysis | Suspension behavior testing
Automotive | Railway | Suspension development | Vehicle testing | Transportation engineering | Research laboratories
Details

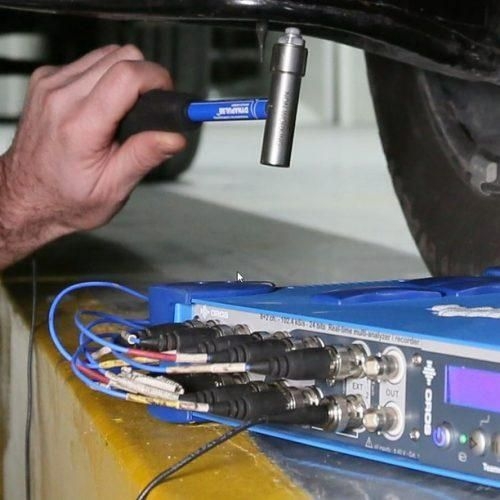

With its dedicated structural mode, the FFT plug-in offers a comprehensive tool panel for FRF (Frequency Response Function) acquisition. Whatever the method used, impact testing with hammer or shaker excitation, FRFs are confidently acquired.
Main Features
Check the validity of the acquisition thanks to different displays and their preview:
- Frequency Response Function
- Coherence
- Trigger blocks
- Averaged results
Features
- Excel based acquisition route and settings (Sequencer)
- Accept/reject after averaging FRFs & Coherence
- True Zoom on X-function up to 128 times
- 25 601 lines real-time results
- Time domain averaged X-functions
- Multi-mode generators: Sine, Swept, Step, Random, Multi-sine, Chirp, Wav
- Smooth change generators: Phase & amplitude ramps, emergency shut-down
- High resolution generators: 10 µHz from 100 µHz to 40 kHz
- Up to 1000+ channels real-time acquisition (analysis + recording)
View more about Bump Tests on main site
