Details

---

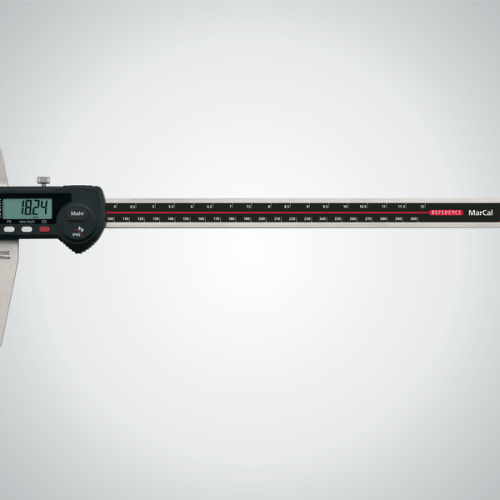

Digital workshop caliper MarCal 18 EWR
Measuring range mm: 0 – 300 mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 65
Package contains: battery, test certificate, instruction manual, case

Code No.: 4112704


Weight	3 kg
Dimensions	50 × 20 × 5 cm

Product Information

• High contrast digit display
• Locking screw above
• Rounded measuring blades for inside measurements
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide

Technical Data

Measuring range mm	0 – 300
Measuring range inch	0 – 12″
Resolution mm/inch	0.01 / .0005″
Error limit (mm)	0.03 mm
Error limit inches	.001″
Standard	Factory standard
Battery type	CR 2032 (3V Lithium)
Dimensions	a 410 mm | b 90 mm | c 10 mm | d 10 mm | e 20 mm | f 40 mm |
