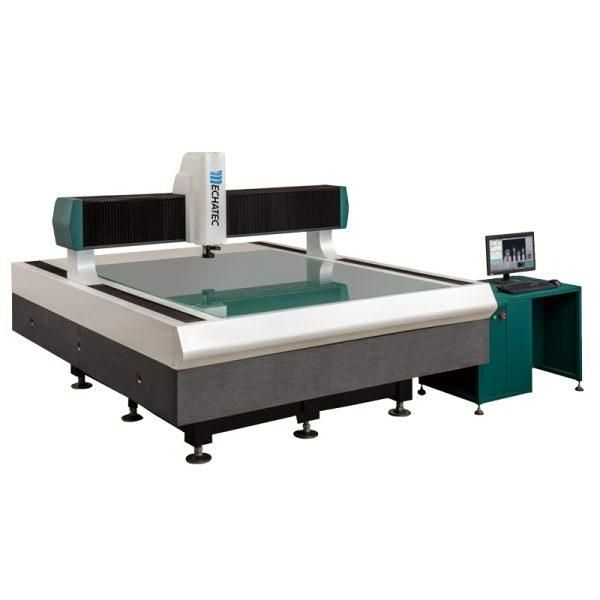

MVG series is latest large stroke gantry type CNC video measuring system. It adopts original imported from Japan screw drive and servo control technology, combined with our self-developed automated measurement software, it has been widely used in LCD display parts, PCB, communication device parts, sheet metal, space industry and other industries for precision auto measurement.
Features
- It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™ auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.
- Grade 00 JINANQING granite base, gantry structure, with German & Japanese auto-control technology, can achieve high precision motion, high stability for measuring large volume work-piece.
- Programmable control of integrated 40 groups, 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.
- Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderful measurement experience.
- Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.
Technical Specification
| Model | MVG0203 | MVG0405 | MVG0608 | MVG0810 | MVG1012 | MVG1215 | MVG1518 |
|---|---|---|---|---|---|---|---|
| Glass Size (mm) | 300×400 | 500×600 | 700×900 | 900×1000 | 1100×1300 | 1300×1600 | 1600×1900 |
| X,Y Stroke (mm) | 200×300 | 400×500 | 600×800×200 | 800×1000×200 | 1000×1200×200 | 1200×1500×200 | 1500×1800×200 |
| Z Stroke (mm) | 200 | ||||||
| Load Capacity | approx. 35 kg | ||||||
| Dimension (mm) | 820×1020×1600 | 1020×1220×1600 | 1220×1520×1600 | 1420×1720×1600 | 1620×1920×1600 | 1820×2220×1600 | 2120×2520×1600 |
| Weight (kg) | 1000 | 1250 | 1380 | 2000 | 2500 | 3000 | 4000 |
| Resolution | 0.5 / 0.1 μm | ||||||
| Camera | TEO™ 1/2″ CCD Camera | ||||||
| Zoom Lens | Professional auto zoom lens (0.7–4.5X) | ||||||
| Video Magnification | 20–128X | ||||||
| FOV | 12.7 mm | ||||||
| Accuracy E1* | Ex,y ≤ (2.8 + L/200) μm | Ex,y ≤ (3.5 + L/200) μm | Ex,y ≤ (4.5 + L/200) μm | ||||
| Accuracy E2* | Exy ≤ (3.3 + L/200) μm | Exy ≤ (4.5 + L/200) μm | Exy ≤ (5.8 + L/200) μm | ||||
| Illumination | Surface & transmitted LED light source, brightness adjustable | ||||||
